Examples¶
Blueprints¶
Ready-to-import automations. Each blueprint uses entity selectors so it works with any Particle Man location.
AQI Alert¶
Notify when the Air Quality Advisory reaches a configured level; send a recovery notification when it clears.
Import Blueprint{ .md-button .md-button--primary }
View blueprint YAML
blueprint:
name: "Particle Man: AQI Alert"
description: >-
Sends a notification when the Air Quality Advisory reaches a configured level,
and a recovery notification when it clears.
domain: automation
source_url: https://github.com/mnestrud/particle-man/blob/main/blueprints/aqi_alert.yaml
input:
aqi_advisory:
name: Air Quality Advisory sensor
description: >-
Select your Particle Man Air Quality Advisory sensor
(Pollution device → Air Quality Advisory).
selector:
entity:
domain: sensor
alert_level:
name: Alert when advisory reaches
default: Unhealthy for Sensitive Groups
selector:
select:
options:
- label: "Moderate"
value: Moderate
- label: "Unhealthy for Sensitive Groups"
value: Unhealthy for Sensitive Groups
- label: "Unhealthy"
value: Unhealthy
- label: "Very Unhealthy"
value: Very Unhealthy
- label: "Hazardous"
value: Hazardous
alert_actions:
name: Actions on alert
description: What to do when air quality reaches the alert level.
selector:
action: {}
clear_actions:
name: Actions on clear
description: What to do when air quality returns below the alert level. Leave empty to skip.
default: []
selector:
action: {}
variables:
level: !input alert_level
all_levels:
- Good
- Moderate
- Unhealthy for Sensitive Groups
- Unhealthy
- Very Unhealthy
- Hazardous
threshold_idx: "{{ all_levels.index(level) }}"
triggers:
- trigger: state
entity_id: !input aqi_advisory
id: changed
conditions:
- condition: or
conditions:
- condition: and
conditions:
- condition: trigger
id: changed
- condition: template
value_template: >-
{{ trigger.to_state.state in all_levels
and all_levels.index(trigger.to_state.state) >= threshold_idx | int }}
- condition: and
conditions:
- condition: trigger
id: changed
- condition: template
value_template: >-
{{ trigger.from_state is not none
and trigger.from_state.state in all_levels
and all_levels.index(trigger.from_state.state) >= threshold_idx | int
and (trigger.to_state.state not in all_levels
or all_levels.index(trigger.to_state.state) < threshold_idx | int) }}
actions:
- if:
- condition: template
value_template: >-
{{ trigger.to_state.state in all_levels
and all_levels.index(trigger.to_state.state) >= threshold_idx | int }}
then: !input alert_actions
else: !input clear_actions
Morning Pollen Brief¶
Daily notification when the Pollen Advisory reaches a configured level.
Import Blueprint{ .md-button .md-button--primary }
View blueprint YAML
blueprint:
name: "Particle Man: Morning Pollen Brief"
description: >-
Sends a daily notification at a configured time when the Pollen Advisory
is at or above a configured level.
domain: automation
source_url: https://github.com/mnestrud/particle-man/blob/main/blueprints/pollen_morning_brief.yaml
input:
pollen_advisory:
name: Pollen Advisory sensor
description: >-
Select your Particle Man Pollen Advisory sensor
(Pollen device → Pollen Advisory).
selector:
entity:
domain: sensor
grass_sensor:
name: Grass Pollen sensor
selector:
entity:
domain: sensor
tree_sensor:
name: Tree Pollen sensor
selector:
entity:
domain: sensor
weed_sensor:
name: Weed Pollen sensor
selector:
entity:
domain: sensor
alert_level:
name: Notify when pollen reaches
default: High
selector:
select:
options:
- Very Low
- Low
- Moderate
- High
- Very High
brief_time:
name: Notification time
default: "07:00:00"
selector:
time: {}
notify_actions:
name: Notification actions
selector:
action: {}
variables:
level: !input alert_level
all_levels: ["Very Low", "Low", "Moderate", "High", "Very High"]
triggers:
- trigger: time
at: !input brief_time
conditions:
- condition: template
value_template: >-
{% set idx = all_levels.index(level) %}
{{ all_levels.index(states(pollen_advisory)) >= idx }}
actions: !input notify_actions
Outdoor Activity Check¶
Morning summary combining current AQI advisory and weather conditions.
Import Blueprint{ .md-button .md-button--primary }
View blueprint YAML
blueprint:
name: "Particle Man: Outdoor Activity Check"
description: >-
Morning summary combining AQI advisory and weather conditions
to help plan outdoor activities.
domain: automation
source_url: https://github.com/mnestrud/particle-man/blob/main/blueprints/outdoor_activity_check.yaml
input:
aqi_advisory:
name: Air Quality Advisory sensor
selector:
entity:
domain: sensor
weather_entity:
name: Weather entity
description: Select your Particle Man Weather entity.
selector:
entity:
domain: weather
check_time:
name: Check time
default: "07:30:00"
selector:
time: {}
notify_actions:
name: Notification actions
selector:
action: {}
triggers:
- trigger: time
at: !input check_time
actions: !input notify_actions
Tip
In your notification action, use template variables to build the message:
AQI: {{ states(aqi_advisory) }} ({{ state_attr(aqi_advisory, 'aqi') }}).
Weather: {{ states(weather_entity) }}, {{ state_attr(weather_entity, 'temperature') }}°.
Automation YAML¶
Raw YAML for direct use in the Home Assistant automation editor. Replace entity IDs with your own — find them under Settings → Devices & Services → Particle Man → entities.
Alert when air quality gets bad¶
Uses the Air Quality Advisory sensor for simple state-based triggers.
alias: Alert — Air Quality Advisory
trigger:
- trigger: state
entity_id: sensor.air_quality_advisory
to:
- Unhealthy for Sensitive Groups
- Unhealthy
- Very Unhealthy
- Hazardous
- trigger: state
entity_id: sensor.air_quality_advisory
to:
- Good
- Moderate
id: cleared
action:
- choose:
- conditions:
- condition: trigger
id: cleared
sequence:
- action: notify.mobile_app_your_phone
data:
title: "✅ Air Quality Clear"
message: "Advisory is back to {{ states('sensor.air_quality_advisory') }} (AQI {{ state_attr('sensor.air_quality_advisory', 'aqi') }})."
- conditions: []
sequence:
- action: notify.mobile_app_your_phone
data:
title: "⚠️ Air Quality {{ states('sensor.air_quality_advisory') }}"
message: >
AQI {{ state_attr('sensor.air_quality_advisory', 'aqi') }}.
Dominant pollutant: {{ state_attr('sensor.air_quality_advisory', 'dominant_pollutant') }}.
Alert when pollen is high¶
alias: Alert — High Pollen Morning
trigger:
- trigger: time
at: "07:00:00"
condition:
- condition: state
entity_id: sensor.pollen_advisory
state:
- High
- Very High
action:
- action: notify.mobile_app_your_phone
data:
title: "🌿 {{ states('sensor.pollen_advisory') }} Pollen Today"
message: >
Dominant type: {{ state_attr('sensor.pollen_advisory', 'dominant_type') }}
(index: {{ state_attr('sensor.pollen_advisory', 'dominant_index') }}).
In season: {{ state_attr('sensor.pollen_advisory', 'in_season_types') | join(', ') }}.
Alert on active weather warnings¶
alias: Alert — Weather Warning
trigger:
- trigger: numeric_state
entity_id: sensor.weather_alerts
above: 0
- trigger: numeric_state
entity_id: sensor.weather_alerts
below: 1
id: cleared
action:
- choose:
- conditions:
- condition: trigger
id: cleared
sequence:
- action: notify.mobile_app_your_phone
data:
title: "✅ Weather Alert Expired"
message: "No active weather warnings."
- conditions: []
sequence:
- action: notify.mobile_app_your_phone
data:
title: >
⛈️ {{ states('sensor.weather_alerts') }} Active Weather Warning(s)
message: >
Highest severity: {{ state_attr('sensor.weather_alerts', 'highest_severity') }}.
Types: {{ state_attr('sensor.weather_alerts', 'active_event_types') | join(', ') }}.
Close HVAC fresh-air intake on poor air quality¶
alias: HVAC — Suspend fresh-air intake on bad AQI
trigger:
- trigger: state
entity_id: sensor.air_quality_advisory
to:
- Unhealthy
- Very Unhealthy
- Hazardous
- trigger: state
entity_id: sensor.air_quality_advisory
to:
- Good
- Moderate
- Unhealthy for Sensitive Groups
id: ok
action:
- action: >
{{ 'input_boolean.turn_on' if trigger.id != 'ok' else 'input_boolean.turn_off' }}
target:
entity_id: input_boolean.hvac_fresh_air_suspended
Alert when AQI crosses a numeric threshold¶
Use the numeric Universal AQI sensor when you need a specific threshold not covered by advisory levels.
alias: Alert — AQI Threshold
trigger:
- trigger: numeric_state
entity_id: sensor.universal_aqi
above: 150
id: unhealthy
- trigger: numeric_state
entity_id: sensor.universal_aqi
below: 100
id: recovered
action:
- choose:
- conditions:
- condition: trigger
id: unhealthy
sequence:
- action: notify.mobile_app_your_phone
data:
title: "⚠️ Air Quality Unhealthy"
message: >
AQI is {{ states('sensor.universal_aqi') }} —
{{ state_attr('sensor.universal_aqi', 'category') }}.
- conditions:
- condition: trigger
id: recovered
sequence:
- action: notify.mobile_app_your_phone
data:
title: "✅ Air Quality Improved"
message: "AQI is back to {{ states('sensor.universal_aqi') }}."
API usage warning¶
alias: Alert — Particle Man API Usage Warning
trigger:
- trigger: template
value_template: >
{{ state_attr('sensor.aq_api_calls_monthly', 'status') in ['warning', 'critical']
or state_attr('sensor.weather_api_calls_monthly', 'status') in ['warning', 'critical'] }}
action:
- action: notify.mobile_app_your_phone
data:
title: "📊 Particle Man API Usage"
message: >
AQ: {{ state_attr('sensor.aq_api_calls_monthly', 'pct_projected') }}% of limit.
Weather: {{ state_attr('sensor.weather_api_calls_monthly', 'pct_projected') }}% of limit.
Consider increasing your update interval.
Dashboard examples¶
All examples use built-in Home Assistant cards and are compatible with the visual editor. Replace entity IDs with your own — find them under Settings → Devices & Services → Particle Man → entities.
Current conditions¶
AQI Gauge¶
View YAML
type: gauge
entity: sensor.universal_aqi
min: 0
max: 300
severity:
green: 0
yellow: 51
red: 101
name: Air Quality

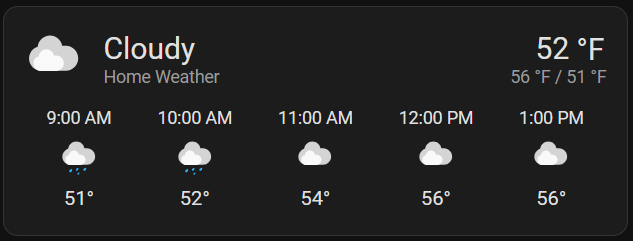

Weather Forecast — Hourly¶
View YAML
type: weather-forecast
entity: weather.home_weather
forecast_type: hourly

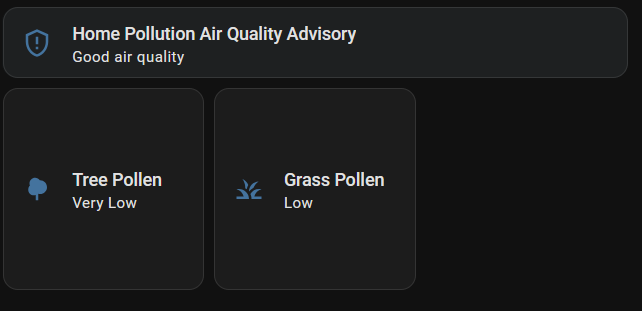

Air Quality Now¶
Pollutants only appear above the EPA "Good" upper boundary. Pollen type tiles appear when Google reports them as in-season (index ≥ 0).
View YAML
type: vertical-stack
cards:
- type: tile
entity: sensor.air_quality_advisory
- type: grid
columns: 3
cards:
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.pm2_5
above: 9
card:
type: tile
entity: sensor.pm2_5_level
name: PM2.5
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.pm10
above: 54
card:
type: tile
entity: sensor.pm10_level
name: PM10
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.ozone_o3
above: 54
card:
type: tile
entity: sensor.ozone_o3_level
name: Ozone
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.nitrogen_dioxide_no2
above: 53
card:
type: tile
entity: sensor.nitrogen_dioxide_no2_level
name: NO2
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.carbon_monoxide_co
above: 4400
card:
type: tile
entity: sensor.carbon_monoxide_co_level
name: CO
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.sulfur_dioxide_so2
above: 35
card:
type: tile
entity: sensor.sulfur_dioxide_so2_level
name: SO2
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.tree_pollen
above: -1
card:
type: tile
entity: sensor.tree_pollen_level
name: Tree Pollen
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.grass_pollen
above: -1
card:
type: tile
entity: sensor.grass_pollen_level
name: Grass Pollen
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.weed_pollen
above: -1
card:
type: tile
entity: sensor.weed_pollen_level
name: Weed Pollen

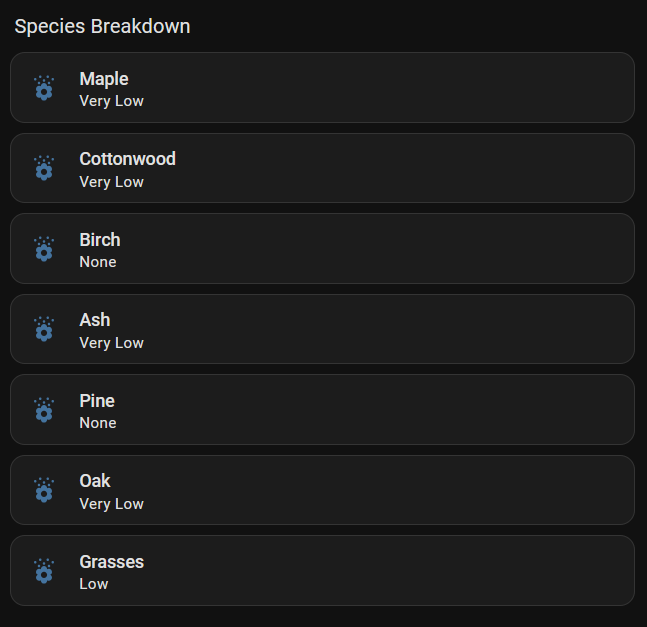

Species Breakdown¶
Each tile only appears when the species is in season (index ≥ 0). Available species vary by region.
View YAML
type: grid
columns: 3
cards:
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.maple_pollen
above: -1
card:
type: tile
entity: sensor.maple_pollen_level
name: Maple
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.elm_pollen
above: -1
card:
type: tile
entity: sensor.elm_pollen_level
name: Elm
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.cottonwood_pollen
above: -1
card:
type: tile
entity: sensor.cottonwood_pollen_level
name: Cottonwood
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.alder_pollen
above: -1
card:
type: tile
entity: sensor.alder_pollen_level
name: Alder
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.birch_pollen
above: -1
card:
type: tile
entity: sensor.birch_pollen_level
name: Birch
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.ash_pollen
above: -1
card:
type: tile
entity: sensor.ash_pollen_level
name: Ash
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.pine_pollen
above: -1
card:
type: tile
entity: sensor.pine_pollen_level
name: Pine
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.oak_pollen
above: -1
card:
type: tile
entity: sensor.oak_pollen_level
name: Oak
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.juniper_pollen
above: -1
card:
type: tile
entity: sensor.juniper_pollen_level
name: Juniper
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.grasses_pollen
above: -1
card:
type: tile
entity: sensor.grasses_pollen_level
name: Grasses
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.ragweed_pollen
above: -1
card:
type: tile
entity: sensor.ragweed_pollen_level
name: Ragweed
Forecasts¶

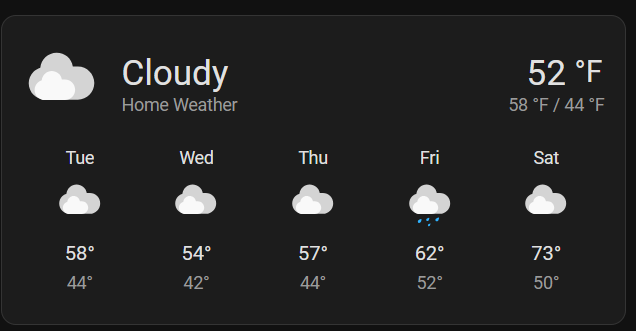

5-Day Weather Forecast¶
View YAML
type: weather-forecast
entity: weather.home_weather
forecast_type: daily

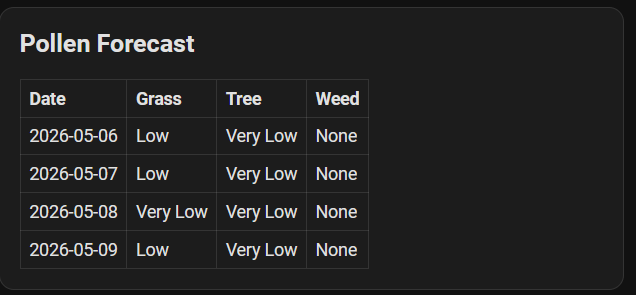

5-Day Pollen Forecast¶
Shows pollen categories for Grass, Tree, and Weed over the next 5 days.
View YAML
type: markdown
content: |
## Pollen Forecast
| Date | Grass | Tree | Weed |
|------|-------|------|------|
{% for i in range(state_attr('sensor.grass_pollen', 'daily_forecast') | length) -%}
{%- set g = state_attr('sensor.grass_pollen', 'daily_forecast')[i] -%}
{%- set t = state_attr('sensor.tree_pollen', 'daily_forecast')[i] -%}
{%- set w = state_attr('sensor.weed_pollen', 'daily_forecast')[i] -%}
| {{ g.datetime[:10] }} | {{ g.category }} | {{ t.category }} | {{ w.category }} |
{% endfor %}

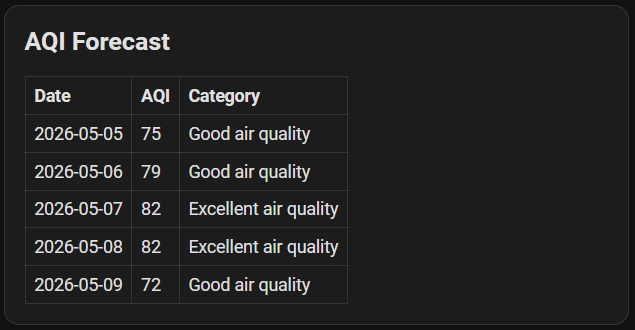

5-Day AQI Forecast¶
Pulls from the Universal AQI sensor's daily_forecast attribute.
View YAML
type: markdown
content: |
## AQI Forecast
| Date | AQI | Category |
|------|-----|----------|
{% for d in state_attr('sensor.universal_aqi', 'daily_forecast') -%}
| {{ d.datetime[:10] }} | {{ d.aqi }} | {{ d.category }} |
{% endfor %}
